SPECIFICATIONS

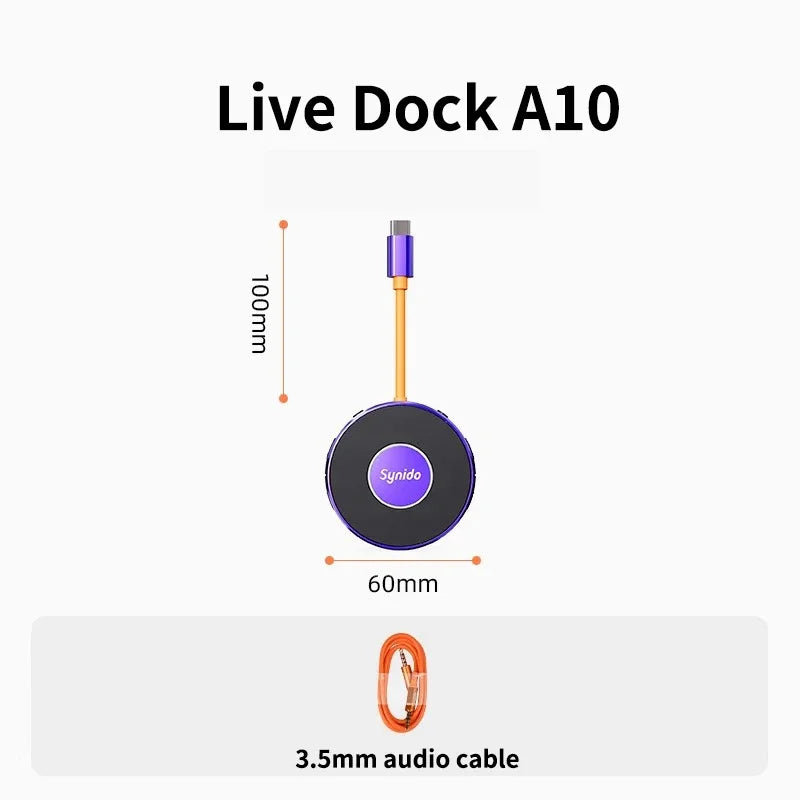

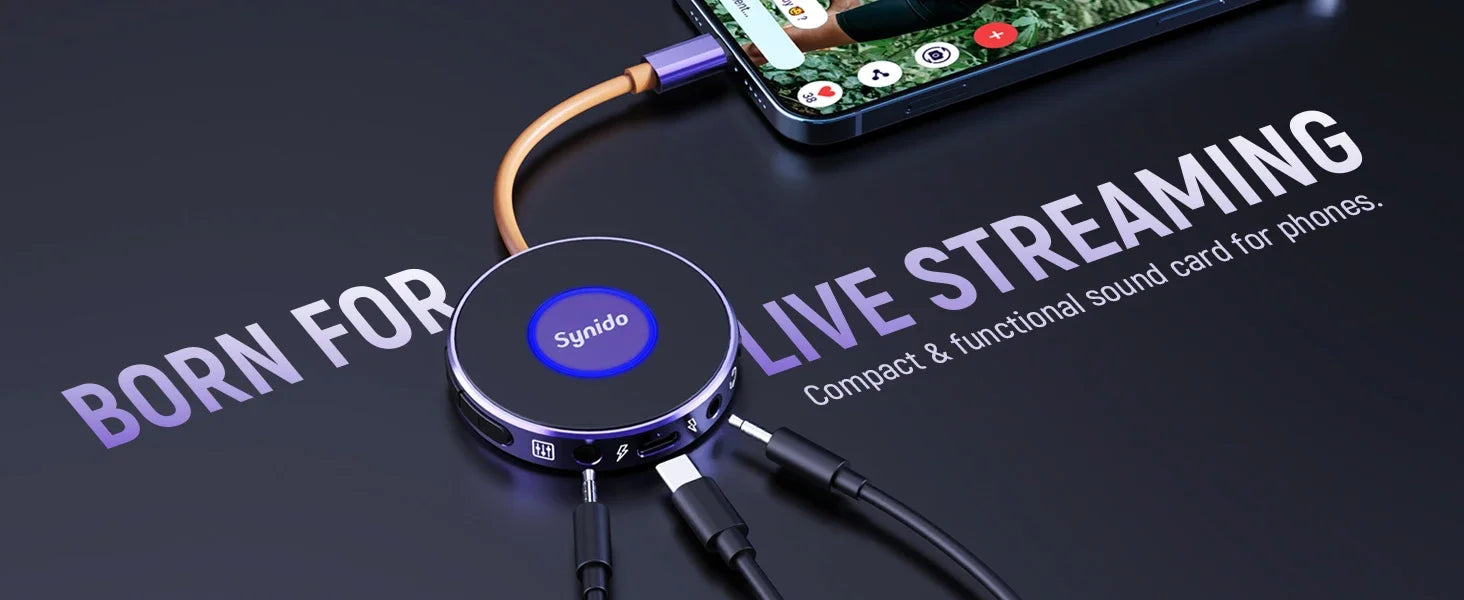

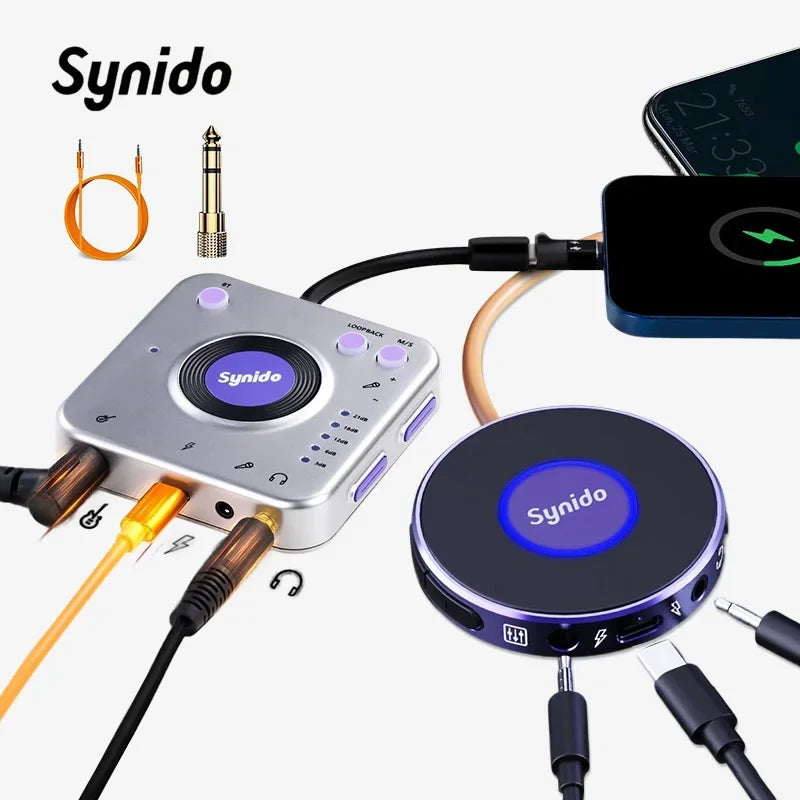

Live DOCK A10 Audio Adapter

Synido Live Dock A10 is a high quality portable audio docking station.
Built-in Dual-Core chip: A High-performance ARM Cortex-M4F core and a high-performance32-bit DSP core. Independent high-performance AD/DA conversion, supporting 24-bit, 48 kHz Sample Rate and 110 dB SNR. Universal for mobile/computer.

. HD sound quality brings an enjoyable and excellent listening experience.
. With a conversion triple jack, the phone can be charged while live streaming.
. Supports loop back and monitoring.
. Bluetooth 5.0 wireless accompaniment.

Product Specification

Product Name:Synido Live dock
Product Model:A10
Sampling Rate:24Bit/48kHz
CH:2 In/2 0ut
SNR:110dB
Power:0.75w
Input:5V=2A

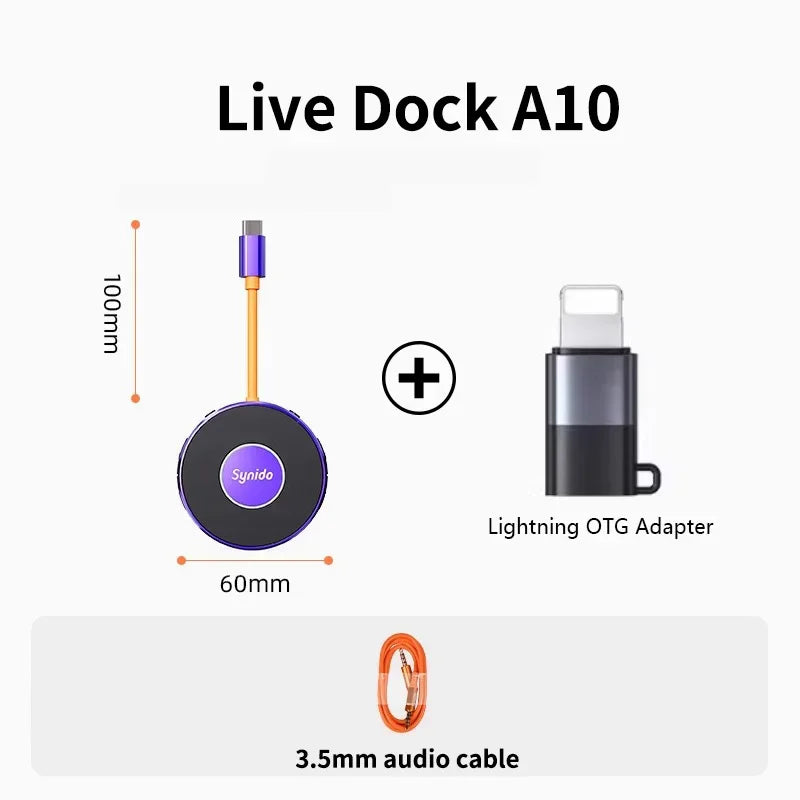

Package list: live Dock A10*1, User Manual*1, 3.5mm Audio Cable*1

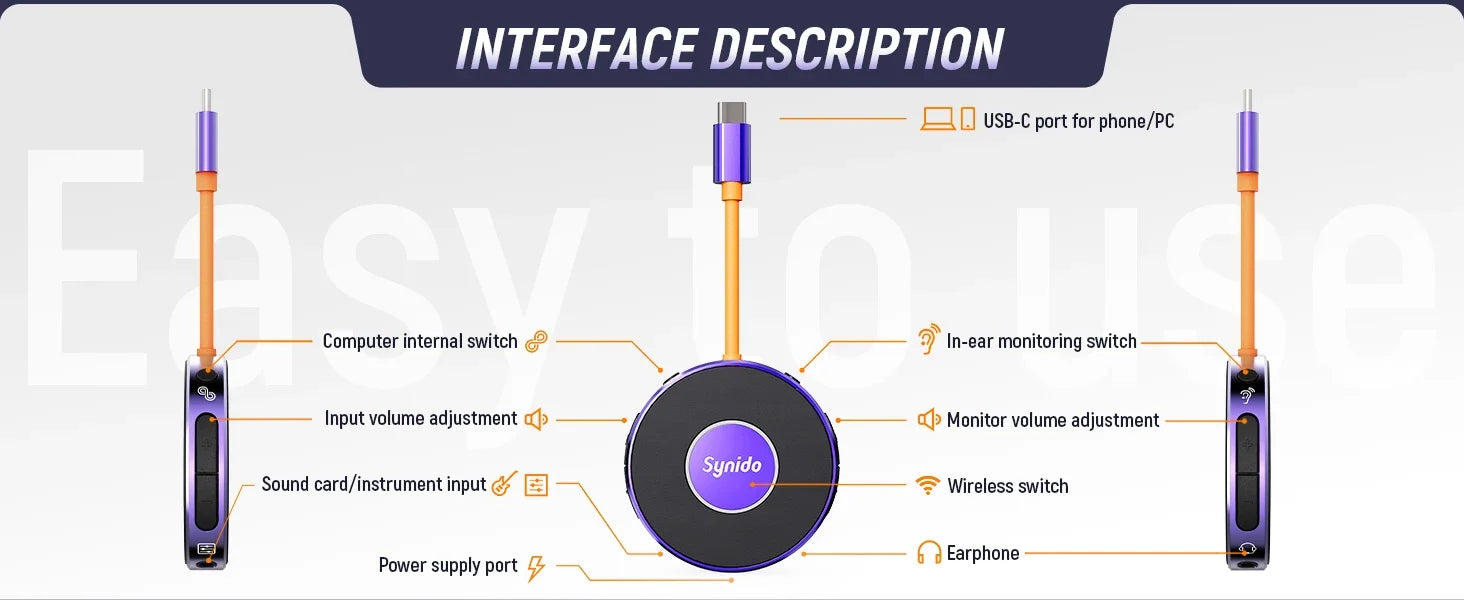

1:Loopback Button

When playing music on the computer/mobile phone, the music can be transmitted back to the computer/mobilephone for recording by using Loopback button.

2:Volume input Button

Adjust the input volume level.

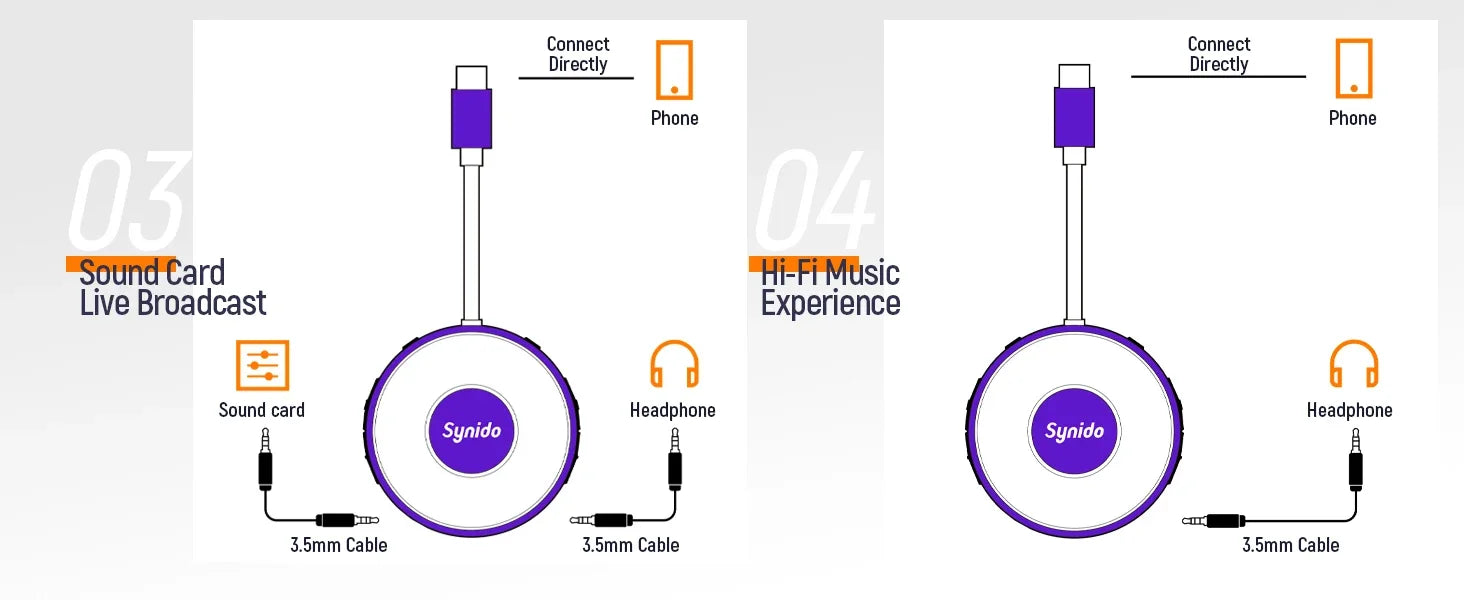

3:Sound Card jack

Connect sound card only, you can record vocal effects orwired in accompaniment.

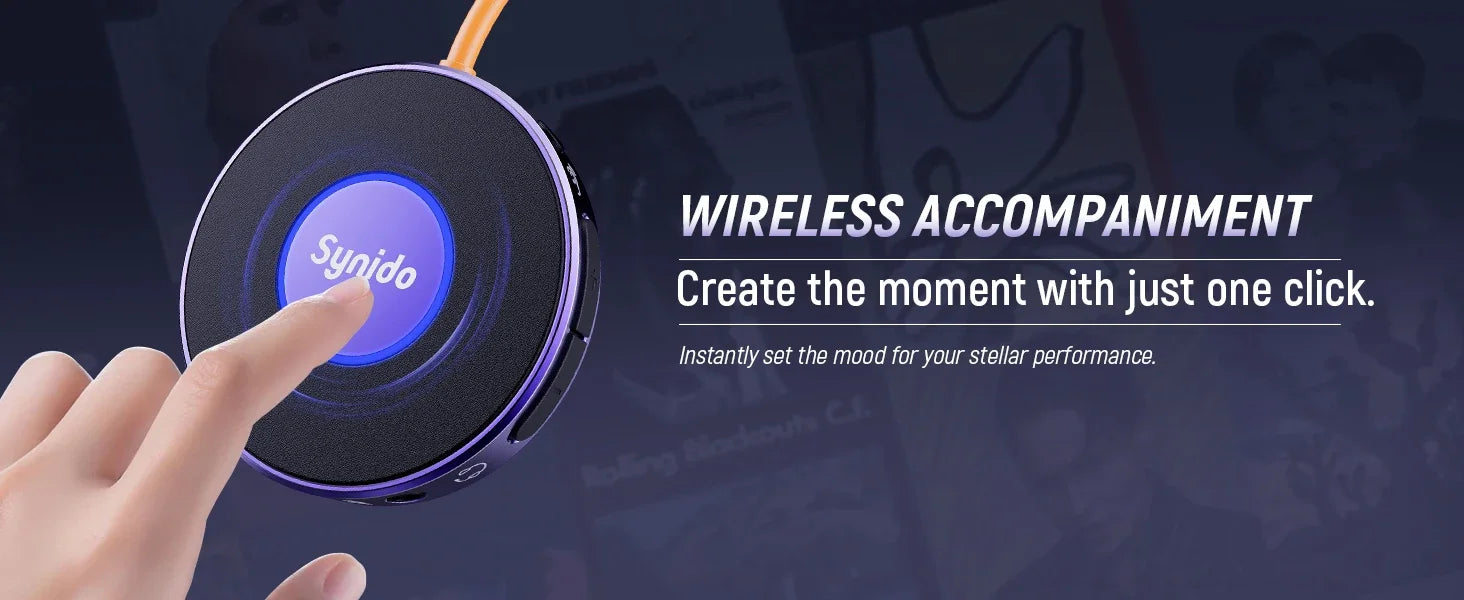

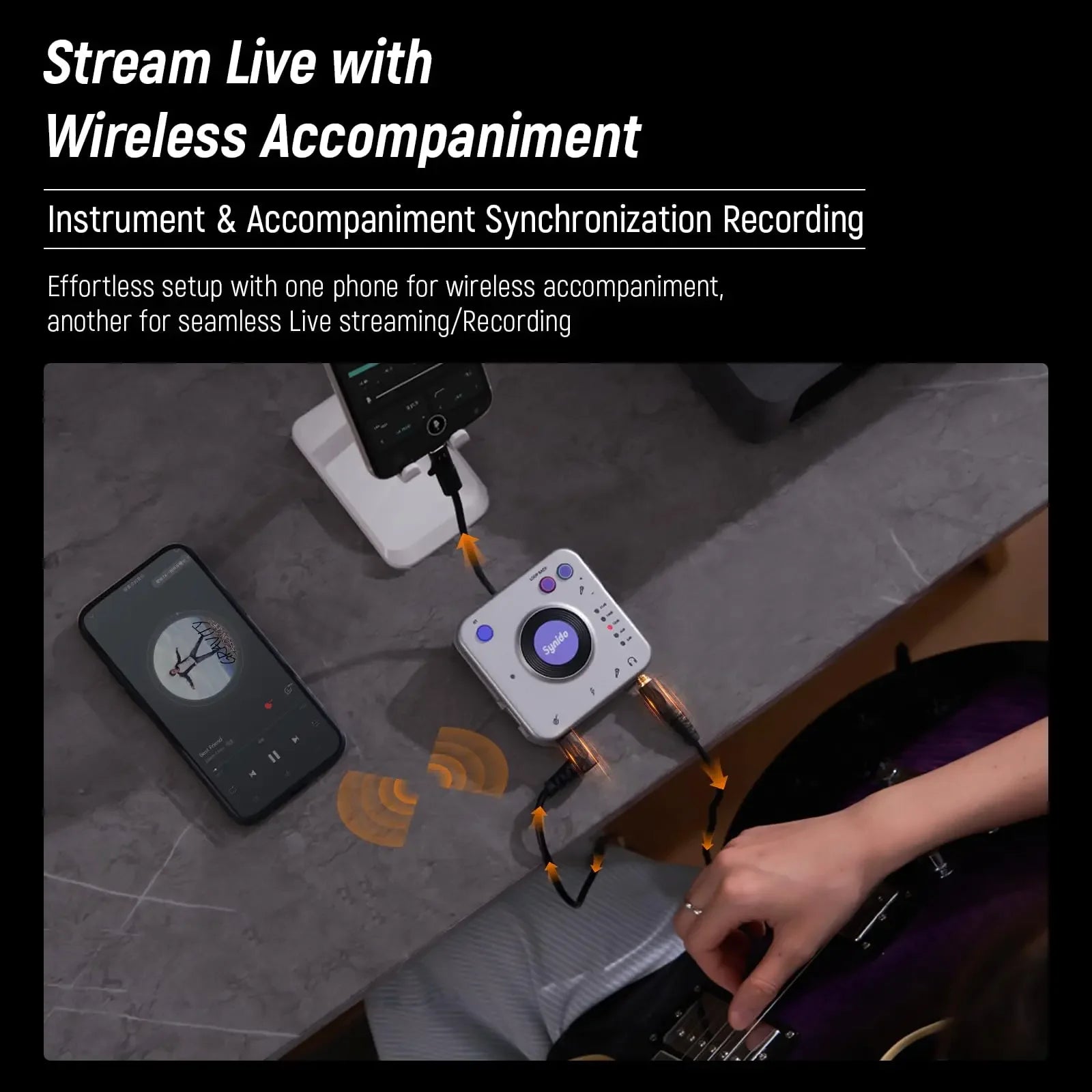

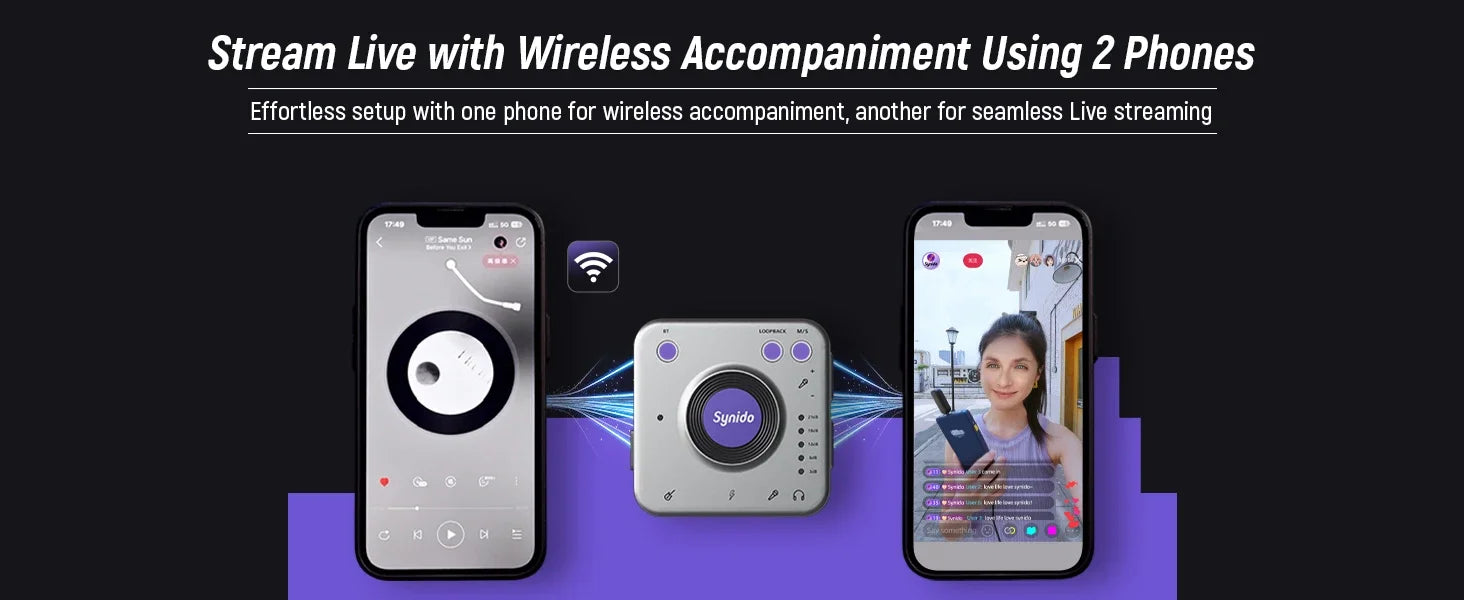

4:Bluetooth Button

Wireless Accompaniment, blue light flashes after turning on,always on after completing the connection.

5:Headphone Monitor Button

Earphone monitoring be input after turning on the button,stopped monitoring input is after turning it off, but the inputsignal can be recorded to the mobile phone/compute.

6:Volume Monitor Button

Adjust the volume level of the headset jack.

7:Headset jack

Connect the headset can monitor the music and record phonecalls.

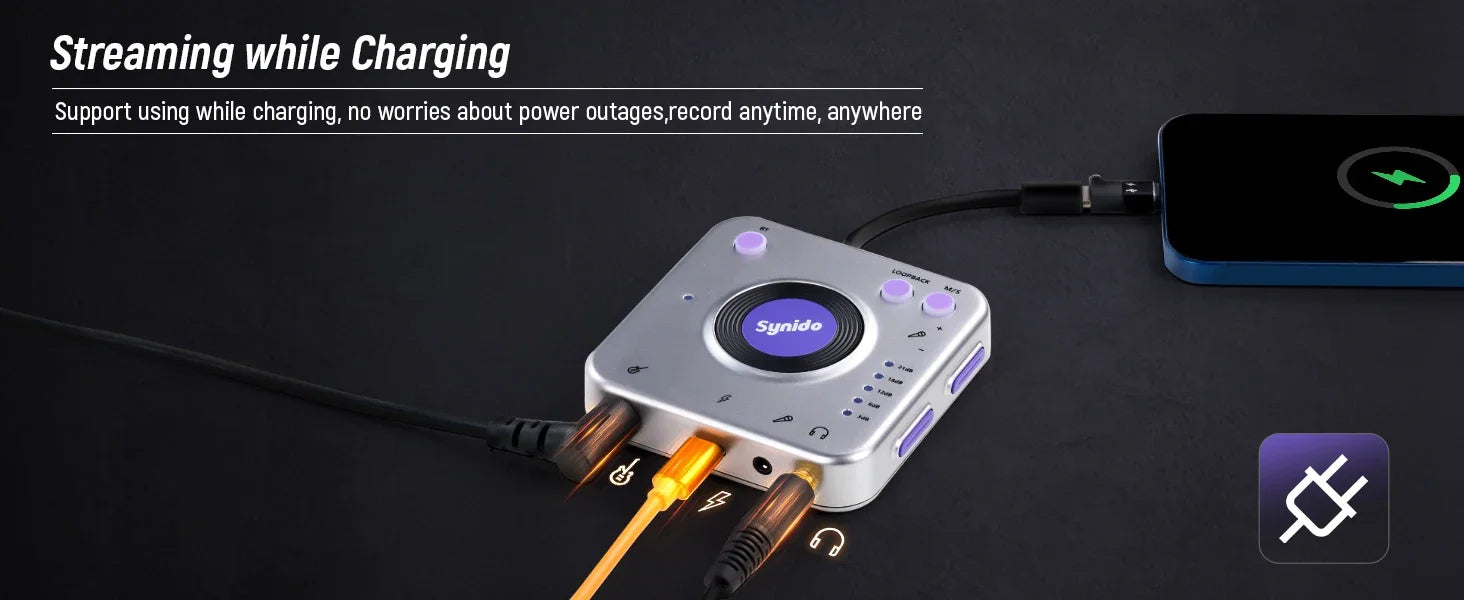

8:Power Port

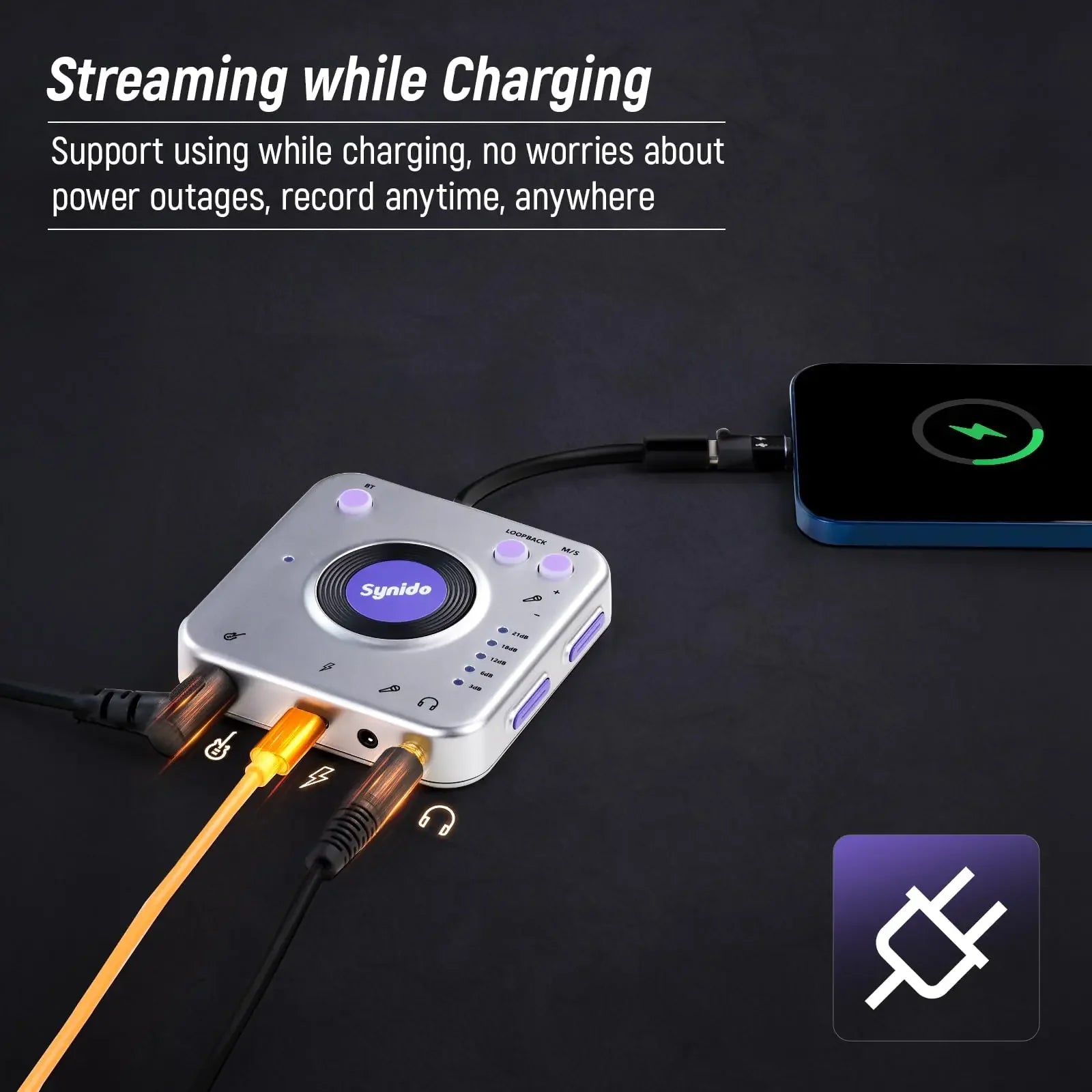

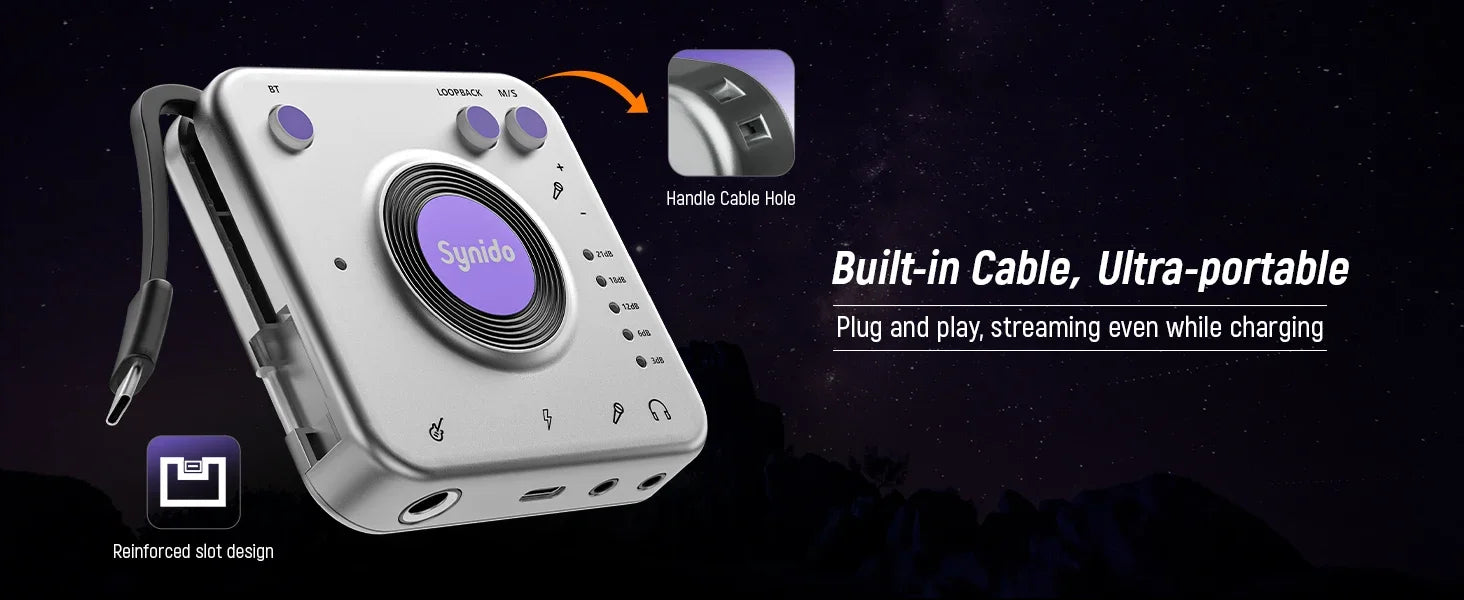

The phone can be charged while live streaming. Not occupyingthe charging port on the phone.

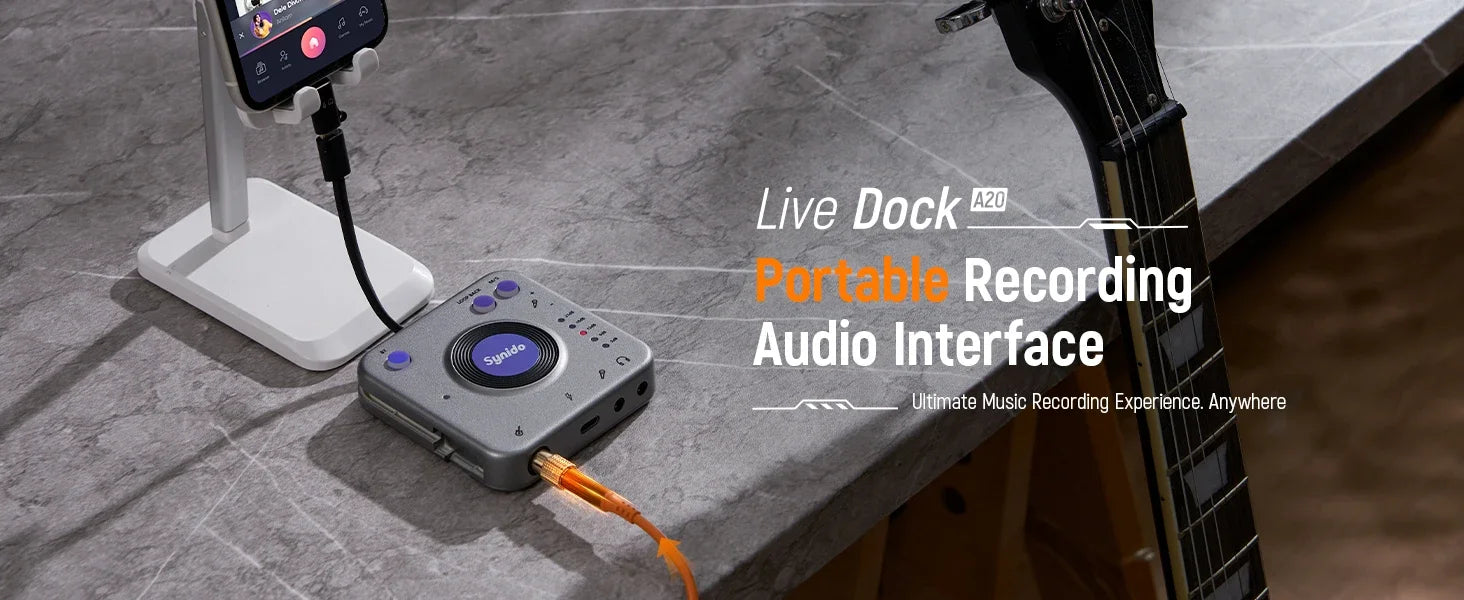

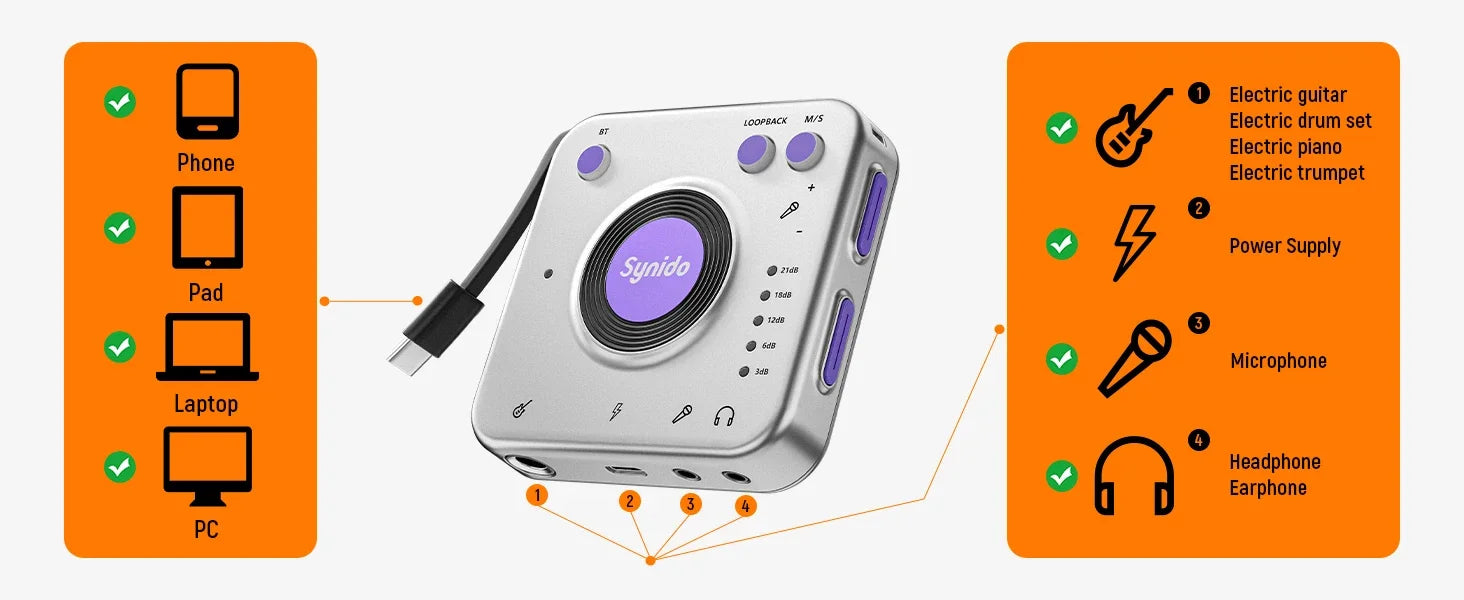

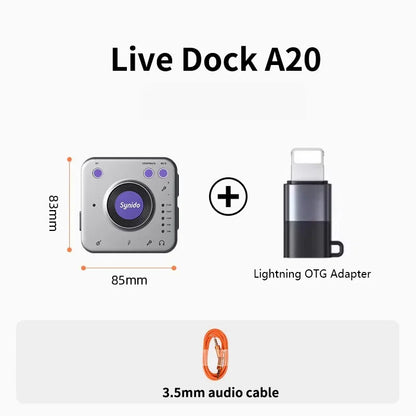

Live DOCK A20 Audio Adapter

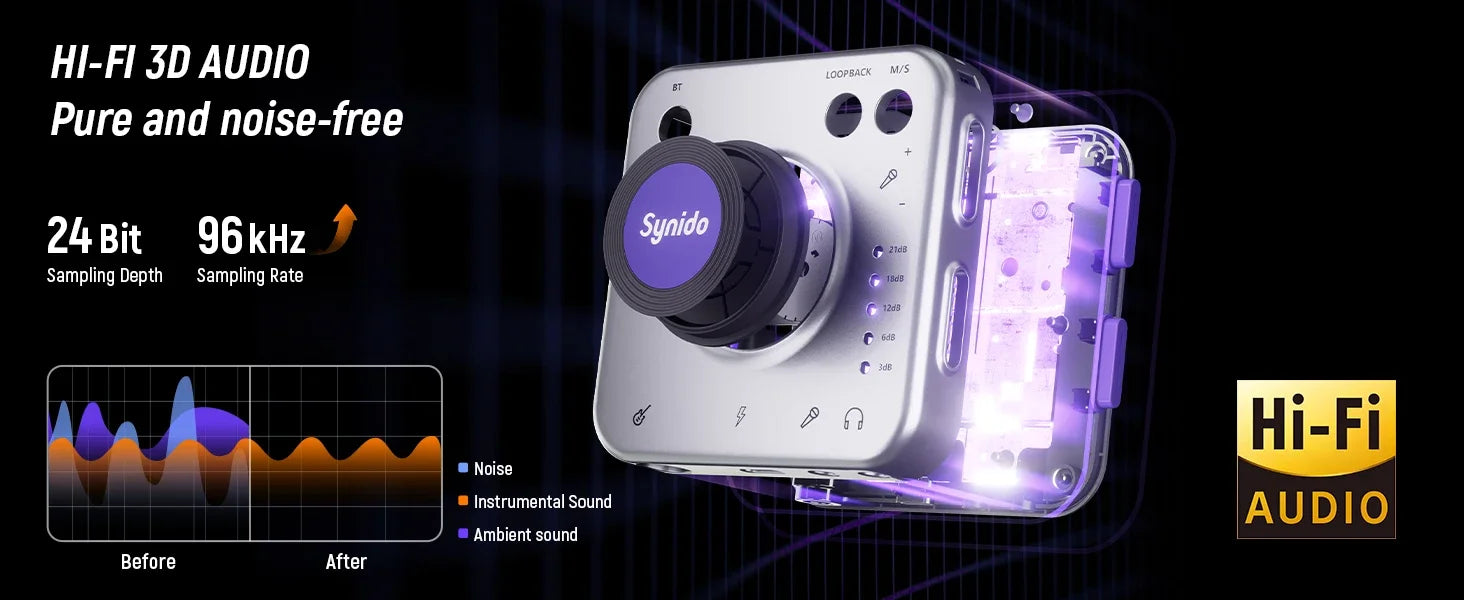

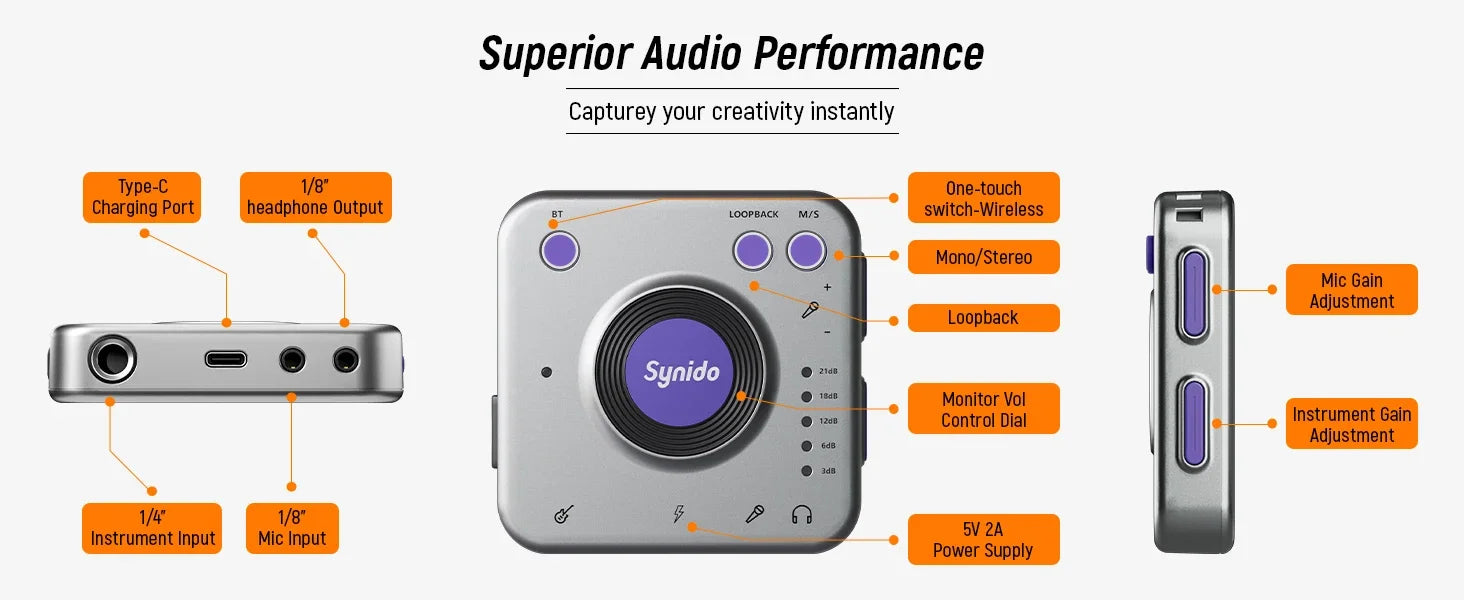

The Synido Live Dock A20 is a portable instrument recording audio interface with a dual-core chip and a high-performance 32-bit DSp core. it features independent high-performance AD/DA conversion supporting 24-bit, 96 kHzaudio sampling.

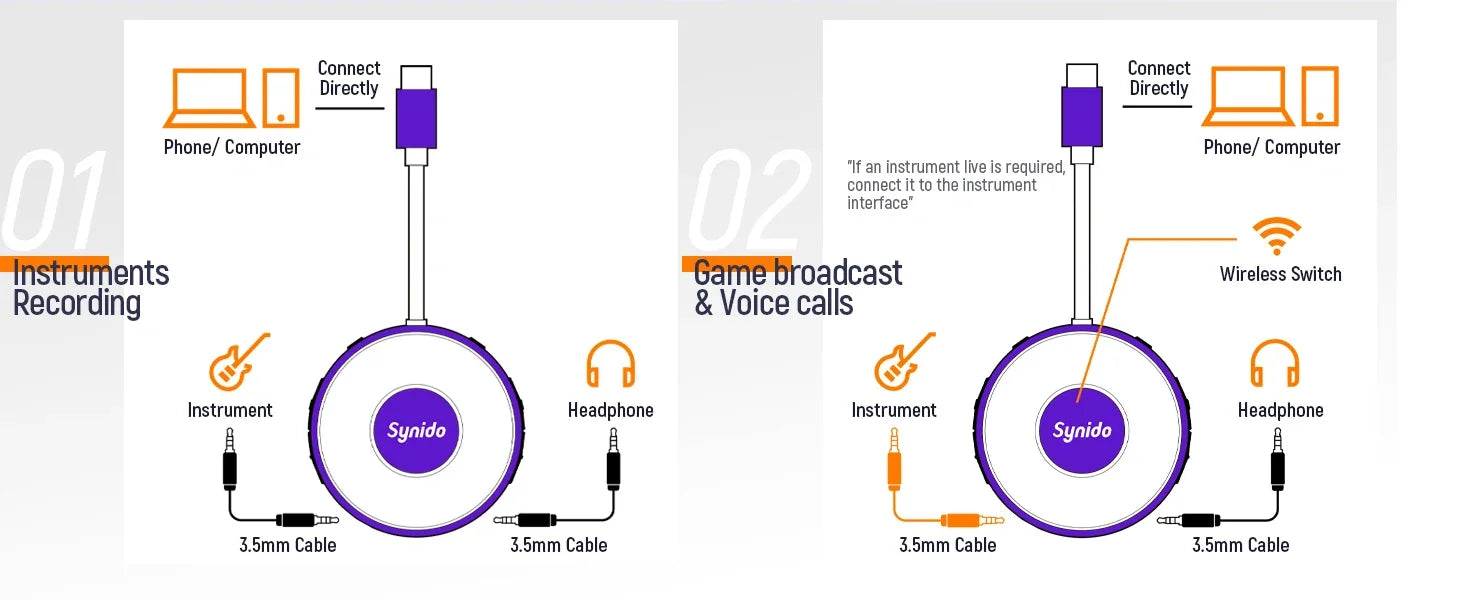

. Plug and play, compatible with phones/computers
. Supports high-definition stereo recording
. BT wireless accompaniment
. Buit-in speaker and monitoring
. Bluetooth 5.0 Wireless Accompaniment

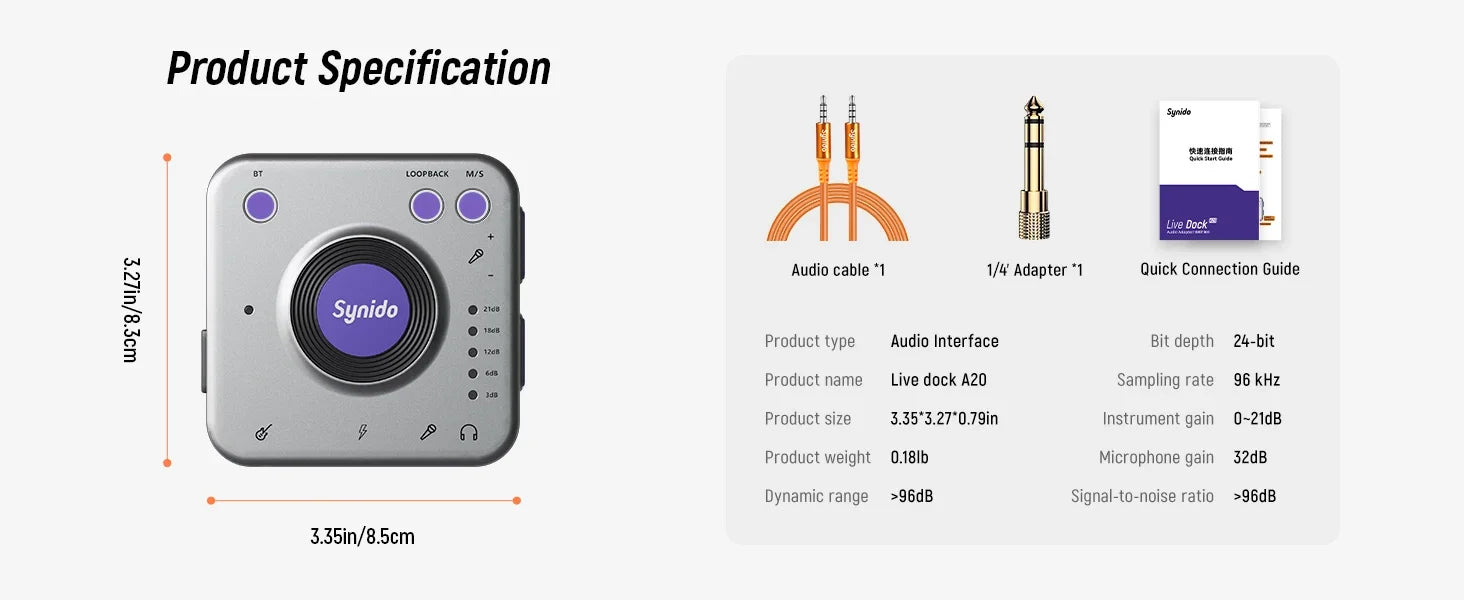

Product Specification

Product Model: Synido Live Dock A20

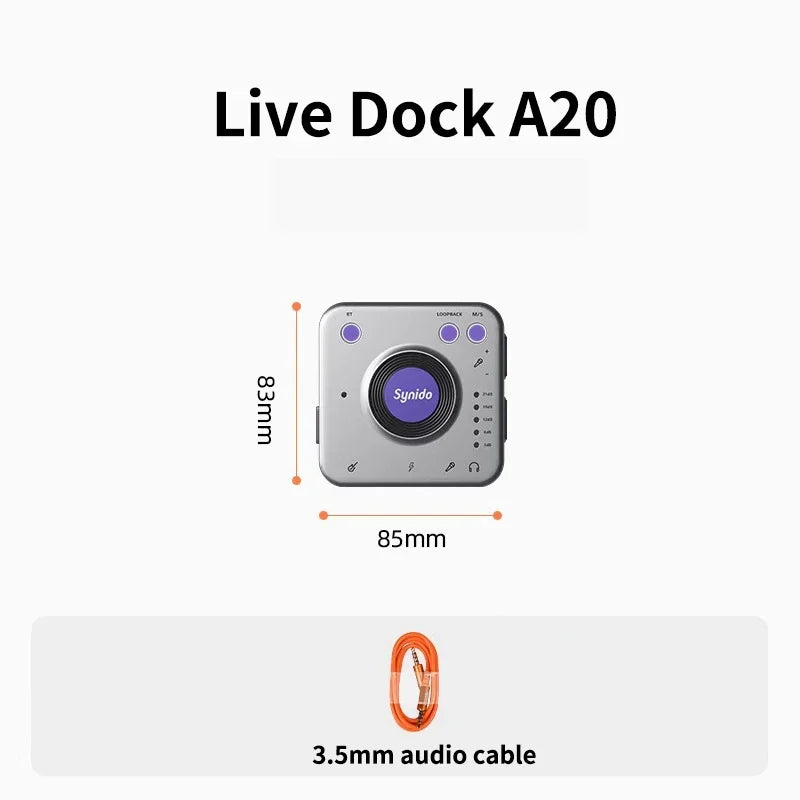

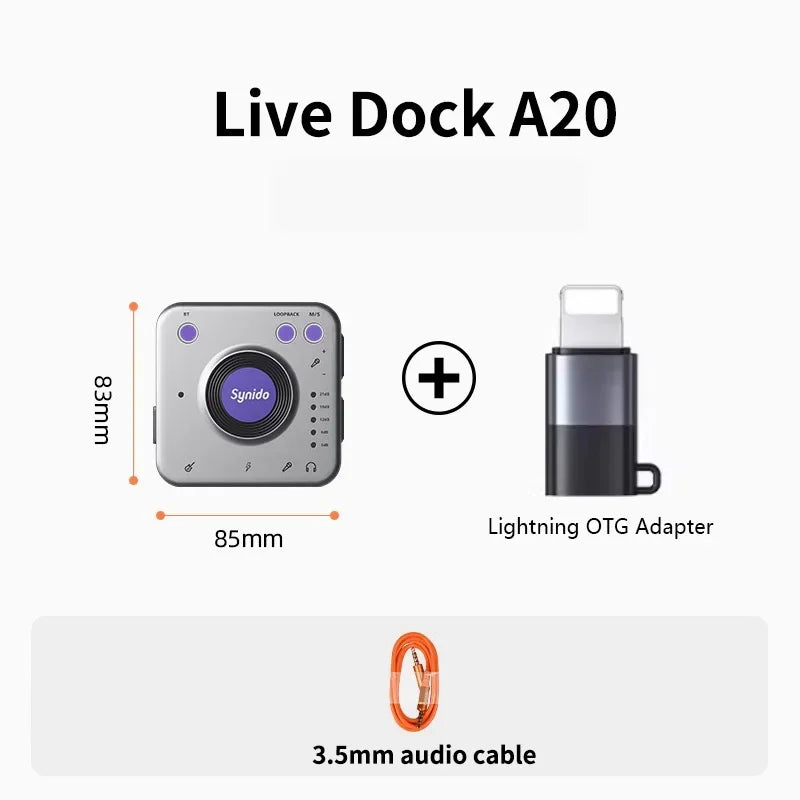

Product Size: 85*83*20mm
Product Weight: 80g
Sampling Rate:24Bit/96kHz
CH:2 ln/2 0ut
SNR:>90dB
Power:0.75w
Input:5V=2A
Package list: live Dock A20*1, User Manual*1, 3.5mm Audio Cable*1, 6.35mm adapter*1, Certificate of Conformity*1
